Mining Safety LED Whips with Steady/Flashing Top Light (6-12 FT, 12~24V)

Item

Description

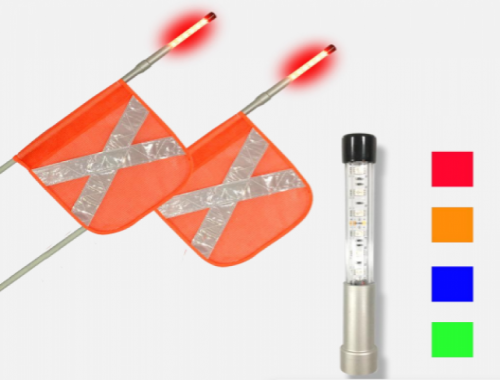

The MU-32004 series mining safety LED whips (also known as lighted safety whips) from MUSSE are built to strict industrial mining specifications (Mining Spec). Their primary purpose is to raise a high-intensity point of light and a reflective warning flag well above the profile of service vehicles, ensuring they are clearly visible to operators of massive haul trucks, excavators, and other heavy equipment, effectively eliminating deadly blind spots.

Equipped with premium 5050 SMD LED technology at the tip, these safety whips provide brilliant illumination with selectable steady-on or flashing modes. Designed to operate across a versatile 12V to 24V DC voltage range, they are perfectly compatible with a wide array of industrial, commercial, and off-road vehicles.

To meet diverse logistical and site-specific needs, the whips feature a modular section design, available in 1, 2, or 3-section variations that assemble quickly via rugged industrial connectors. Paired with a heavy-duty flexible spring base—available in either standard threaded or tool-less quick-release configurations—these whips absorb intense vibrational stress and whip impacts without compromising structural integrity.

Typical Applications

Open-Pit and Underground Mining Sites: Mandatory safety equipment for supervisor trucks, maintenance vehicles, and service equipment sharing haul roads with giant dumpers.
Heavy Construction and Civil Engineering: High-visibility signaling for smaller utility vehicles working around large cranes, bulldozers, and scaffolding.
Quarries and Aggregates Operations: Continuous visual positioning in dusty, high-debris, or low-fog environments.
Industrial Sites and Off-Road Exploration: Essential safety tracking for convoy vehicles, geological survey teams, and site inspection units.

Key Features

High-Brightness 5050 LED Light: Placed at the very top of the whip, offering powerful visual warning in both steady and flashing modes.
Durable & Flexible Flagpole: Engineered to withstand high-speed winds, heavy vibrations, and intense outdoor exposure.
Shock-Absorbing Spring Base: Dissipates mechanical stress at the vehicle mounting point, preventing damage to the chasis or the whip itself.
Quick-Release or Threaded Options: Choose between a secure, permanent threaded mount or a fast, tool-free quick-release system.
Modular Multi-Section Design: Available in single-piece poles or 2 to 3-section variations with secure intermediate connectors for easy storage and transportation.
Reflective Warning Flag: Heavy-duty mesh flags featuring high-vis fluorescent orange paired with bright yellow or silver reflective stripes in square or triangular profiles.

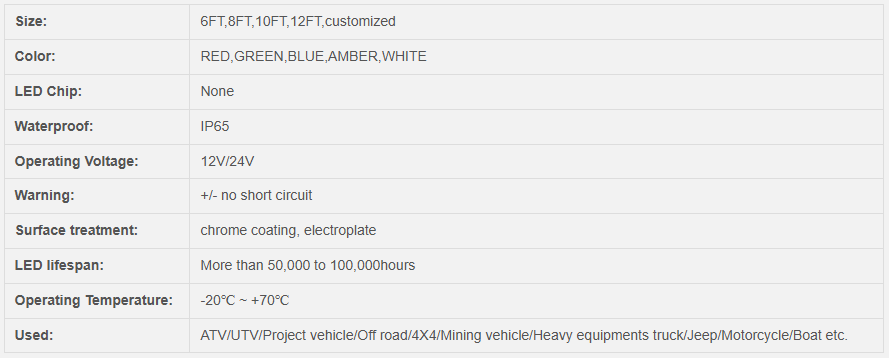

Technical Specifications

Model / SKU	MU-32004
Operating Voltage	12 ~ 24V DC
Light Source	High-Bright SMD 5050 LED (Top Mounted)
Illumination Modes	Steady-On (Solid) / Flashing
Available Lengths	6 FT (1.8 m), 8 FT (2.4 m), 10 FT (3.0 m), 12 FT (3.6 m) or custom sizes
Flag Configurations	• 30 x 30 cm Orange with Yellow / Silver reflective tape • 40 x 40 cm Orange with Yellow / Silver reflective tape • Triangular flag with yellow reflective tape
Base Types	Threaded mount with spring / Quick-release mount with spring
Section Options	1 whole section / 2 sections with 1 connector / 3 sections with 2 connectors
Industrial Compliance	Heavy-duty Mining Specification (Mining Spec)

Product Media

Mining Safety LED Whips MU-32004

Frequently Asked Questions

Q: What is the advantage of choosing a multi-section safety whip?

A: Multi-section whips (2 or 3 sections) can be quickly disassembled into shorter, compact pieces. This makes shipping, handling, and storing spare parts in warehouse facilities far more efficient compared to transporting rigid, full-length 10 or 12-foot single poles.

Q: When should I choose a quick-release base over a standard threaded base?

A: The threaded base is ideal for dedicated site vehicles that stay inside the mining boundary full-time. The quick-release base is highly recommended for supervisor or contractor vehicles that frequently exit the site onto public highways, allowing drivers to remove and store the tall whip in seconds without any tools.

Q: Can the top LED light handle the extreme vibration of rugged quarry terrains?

A: Yes, absolutely. The top LED assembly is hermetically sealed, shockproof, and solid-state. It works in unison with the heavy-duty spring base at the bottom, which absorbs and dampens high-frequency vibrations and abrupt shocks before they reach the electronic components.
